Device Type:sensor
Electrical Standard:eu
Board:esp32
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/smarthomeshop/waterp1meterkit
SmartHomeShopIO WaterP1MeterKit
Description
The WaterP1MeterKit combines DSMR P1 smart meter reading and water meter pulse monitoring in a single ESPHome-based device for Home Assistant. It can monitor energy, gas, and water from one kit, and the latest V3 hardware adds a detachable water sensor, PoE support, and an expansion port for an optional leak or door sensor.
It is designed for fully local use with ESPHome and Home Assistant, with onboarding through captive portal, Improv BLE, or Improv Serial, and supports HTTP OTA firmware updates.
Features
- Combined P1 smart meter and water meter monitoring in one device
- Reads electricity, gas, and water usage locally in Home Assistant
- Built-in HDC1080 temperature and humidity sensing
- Wi-Fi and Ethernet firmware variants depending on hardware revision
- PoE support on V2 and V3
- Optional expansion port on V3 for a water leak sensor or door sensor
- Fully local, open source, and maintained in the WaterP1MeterKit GitHub repo
Specifications
- MCU: ESP32
- Smart meter interface: DSMR P1
- Smart meter compatibility: DSMR 2.2 - 5.0
- Water meter input: pulse sensor with included water meter holder
- Connectivity:
- V1: Wi-Fi and Ethernet
- V2: Wi-Fi, Ethernet, and PoE
- V3: Wi-Fi, Ethernet, and PoE
- Sensors: HDC1080 temperature and humidity
- Firmware: ESPHome
Variants
- WaterP1MeterKit V1 WiFi — original ESP32 hardware with combined P1 and water monitoring
- WaterP1MeterKit V1 Ethernet — original ESP32 hardware with wired Ethernet
- WaterP1MeterKit V2 WiFi — ESP32 hardware with PoE-capable design
- WaterP1MeterKit V2 Ethernet — ESP32 hardware with Ethernet and PoE support
- WaterP1MeterKit V3 WiFi — latest ESP32 hardware with detachable water sensor and expansion port
- WaterP1MeterKit V3 Ethernet — latest ESP32 hardware with Ethernet, PoE, and expansion support
Compatibility
- DSMR smart meters: compatible with DSMR 2.2 - 5.0
- Water meters: compatible with many common analog water meters from brands such as Actaris, Elster, Honeywell, Itron, and Sensus
Please check the official compatibility overview for supported meter photos and model names.
Quickstart
- Connect the kit to the P1 port of the smart meter and mount the water sensor on the water meter.
- Power the device using USB-C, or use PoE on supported hardware.
- Flash or keep the default WiFi build and onboard via the fallback hotspot, Improv BLE, or Improv Serial.
- Adopt the device in Home Assistant / ESPHome.
- If preferred, switch later to the Ethernet firmware directly from the device update entity.
Please check our full documentation and Quick Start Guide and the product page for supported meter details and installation guidance.
Links
Product Images

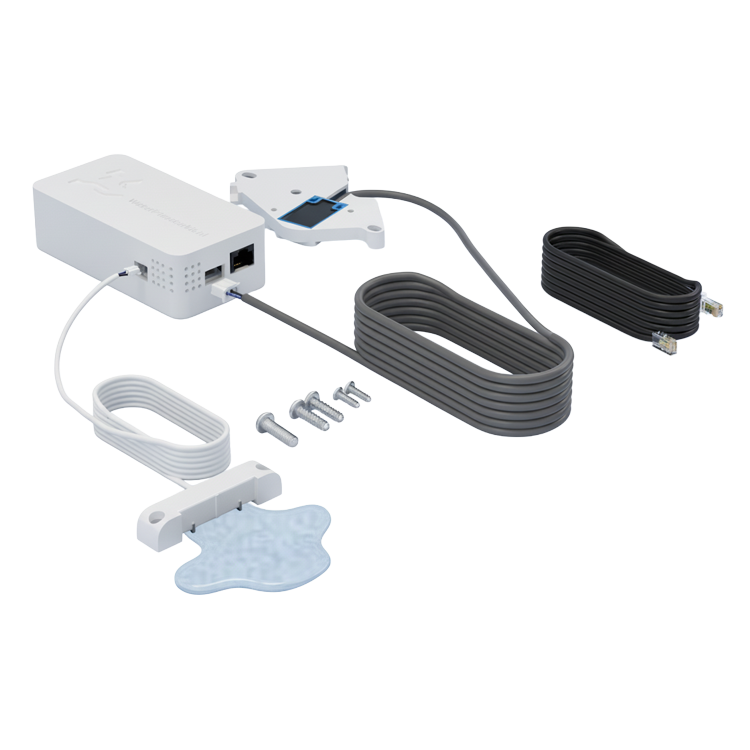

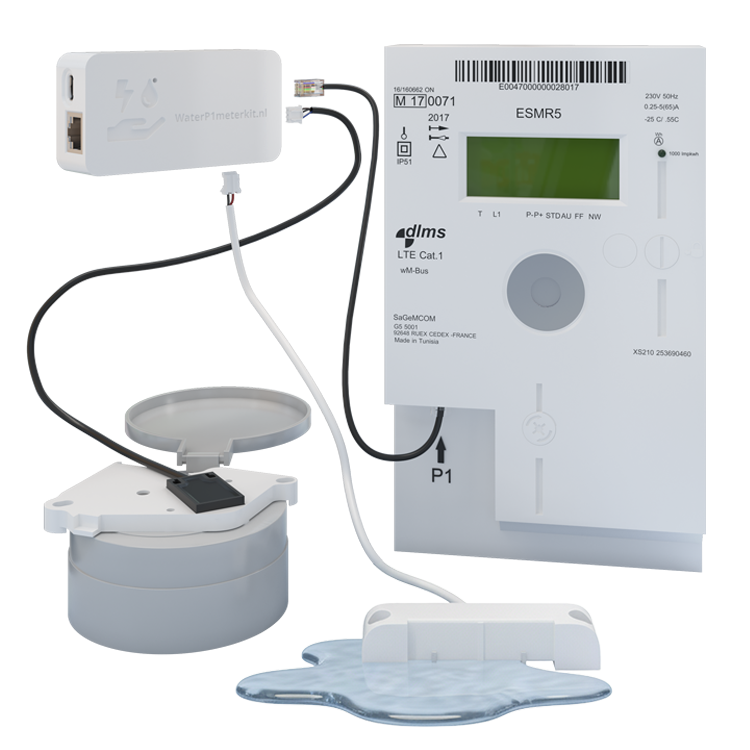

| Product view | In the box |
|---|---|
|  |
